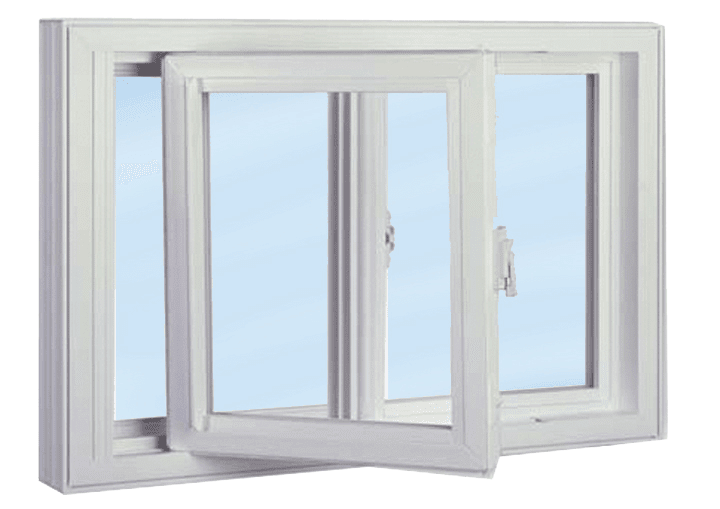

Sliding window
Windows Features - Cross Sections



Quality & Style | Technology | Customization

• 3 1/4″ Fusion-welded frame and sash corners for strength
• Fully interlocking sash to maximize security and for air and water tightness

• Standard pocket sill (welded) with interior drainage channel

Ease of Operation | Longevity
• Horizontal operating sash tilts in, permitting easy exterior cleaning from inside
• Easily removable pull tab full screen
• Heavy-duty cam action locking system for security
• Double locks over 30 inches in Height
• Die-cast zinc pivot bars with patented locking system
Energy Efficiency
• Available with double or triple pane Solar Solutions glazing options

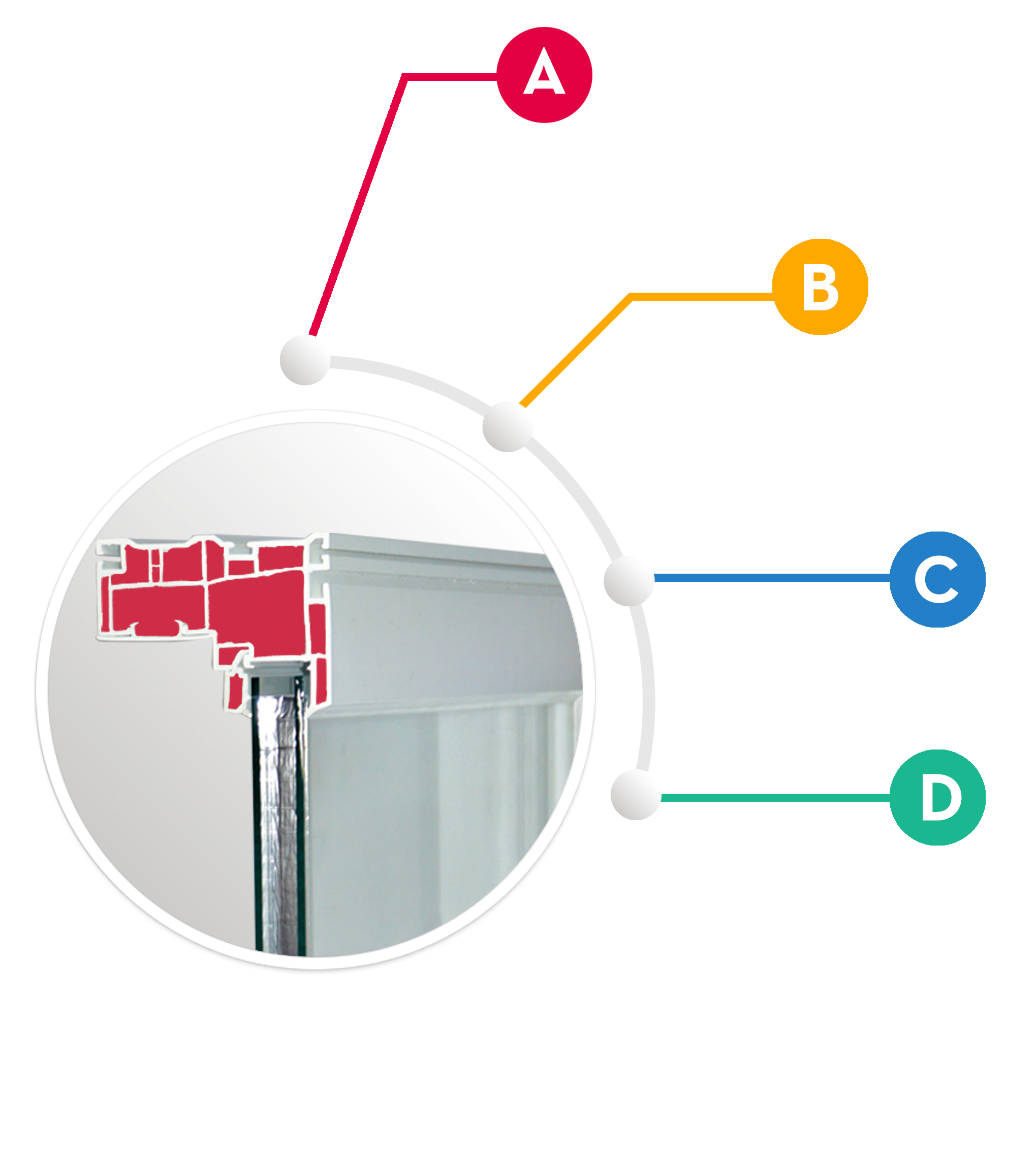

Windows Features

  A - Multi-chambered design insulates and prevents condensation
  B - Classic European profile for a hand-crafted appearance
  C - Double-strength glass with warm edge S-Class super spacer
  D - Quiet quadruple fin weatherseal on casement sash to virtually eliminate air infiltration

White Standard

Product Window Colors - White Standard

Exterior Capstock Colour Options (Two Tone)

Our Capstock colour is co-extruded along with our substrate uPVC profile. The unique capstock material is specially formulated for exception weatherabiltiy and durability with outstanding colour retention, scratch resistance and gloss control year after year.

Exterior_Capstock_colour_WC200

Paint Options (Water Based)

We offer 18 exterior paint colour choices which are water based and environmentally friendly as well as weather and fade-resitant.

Prod colour HC210

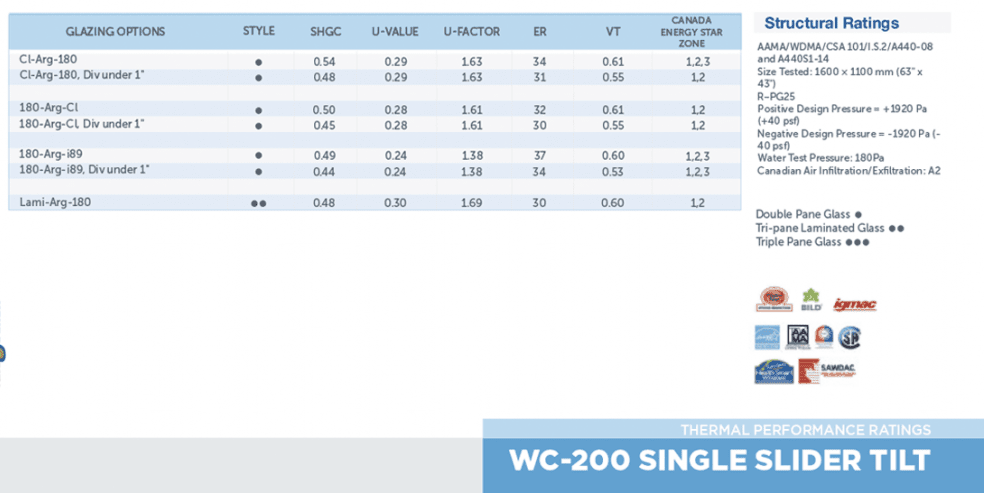

WC200RatingsDownload_ZOOM
